Description

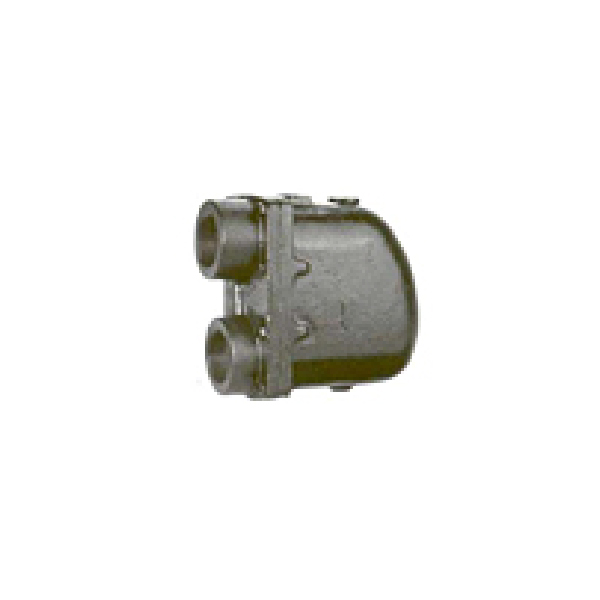

Series ‘CFTH’ High Capacity Float and Thermostatic Steam Trap
High capacity steam trap available in sizes from 2″ to 2-1/2″ for differential pressures up to 175 psig saturated steam service with supply pressures limited to 250 psig at temperatures not to exceed 450 deg. F.
CFTH Models are:
- CFTH-020 for differential pressures up to 20 psi
- CFTH-175 for differential pressures up to 175 psi
CFTH Materials of construction:
- Body: Cast Iron
- Head: Cast Iron
- Gasket: Stainless Steel
- Seat: Stainless Steel
- Float: Non Asbestos Fibre
- Plug: Steel
